English
Inlet connection type: welding, ODF,
Outlet interface type: welding,
ODF, 0.2 bar - 6.0 bar,
Kv value [m³/h]: 0.680,
Maximum working pressure [bar]: 28.0.
Item NO.:
KVC 12 hot gas bypasPayment:
30% T/T as the deposit and 70% of the balanceMarket Price:
$118.31Price:
$112.67Product Origin:
made in ChinaColor:
as pictureShipping Port:
GuangzhouLead Time：
45Gross weight: 0.37 kg
Net weight: 0.32 kg
EAN: 5702428411486
Approval file name: Refrigerant valve 53R0
Cv value [gal/min]: 0.79 gal/min
Kv value [m³/h]: 0.68 m³/h
The maximum value of the p-interval [bar]: 2 bar
P-range maximum [lb-inch]: 29 psi
REACH Candidate List substances >0.1% Lead (CAS no. 7439-92-1)
UL listed refrigerant: R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A

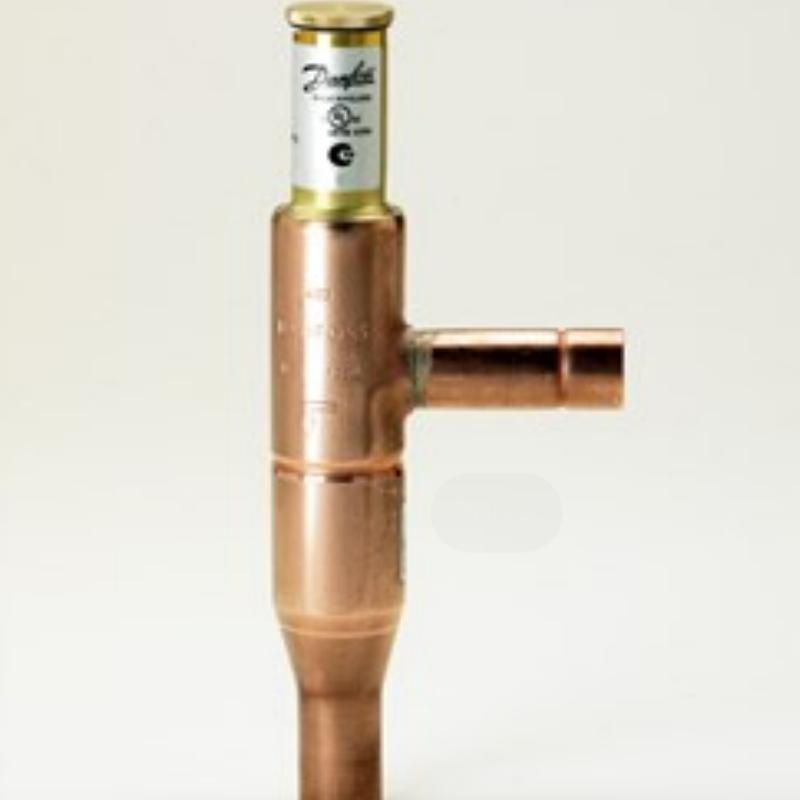

Product Name: Hot Gas Bypass Regulator
Product range: Pressure and temperature regulating valves
Product family name: KVC
Product Accessory: Number
Media temperature range [°C] [min]: -45 °C
Media temperature range [°C] [max.]: 130 °C
Media temperature range [°F] [max]: 266 °F
Media temperature range [°F] [min]: -49 °F
Factory setting [bar]: 2 bar
Outlet size [inch]: 1/2 in
Export interface type: welding, ODF
Refrigerant(s): R1270
R134a
R22
R290
R404A
R407A
R407C
R407F
R422B
R422D
R448A
R449A
R450A
R452A
R507A
R513A
R600
R600a
R407H
R449B
R454C
R455A
R515B
R516A
R1234yf
R454A
R1234ze(E)
Refrigerant oil compatibility: oil-free applications
R1234ze(E)
R513A
Approval of C UL US certification
EAC
LLC CDC TYSK
RoHS
RoHS China
Oil-free refrigerant: R1234ze(E)
R513A
Maximum test pressure [bar]: 31 bar
Maximum test pressure [lb-inch gauge]: 450 psig
Maximum working pressure [bar]: 28 bar
Maximum working pressure [psig]: 406 psig
Quantity per pack: 12 pc
Flow direction indicator: one-way arrow etching
Lubricant compatibility: Oil-free applications
Similar product: 034L1043
Adjustment range [bar] [max.]: 6 bar
Adjustment range [bar] [min.]: 0.2 bar
Adjustment range [lb-inch gauge] PE [max]: 87 psig
Adjustment range [lb-inch gauge] PE [min]: 3 psig
Inlet size [inch]: 1/2 in
Inlet interface type: welding, ODF
Rated capacity R404A/R507 [TR]: 2.02 tons
Rated capacity R134a [TR]: 1.36 tons
Rated capacity R134a [kW]: 4.8 kW
Rated capacity R22 [TR]: 2.14 tons
Rated capacity R22 [kW]: 7.6 kW
Rated capacity R404A/R507 [kW]: 6.9 kW
Rated capacity R407C [TR]: 2.31 tons
Rated capacity R407C [kW]: 8.4 kW
Packaging method: multi-packing
Factory set [lb-inch gauge:] 29 psig
Serviceable: KV valve spare parts
Model: KVC 12
