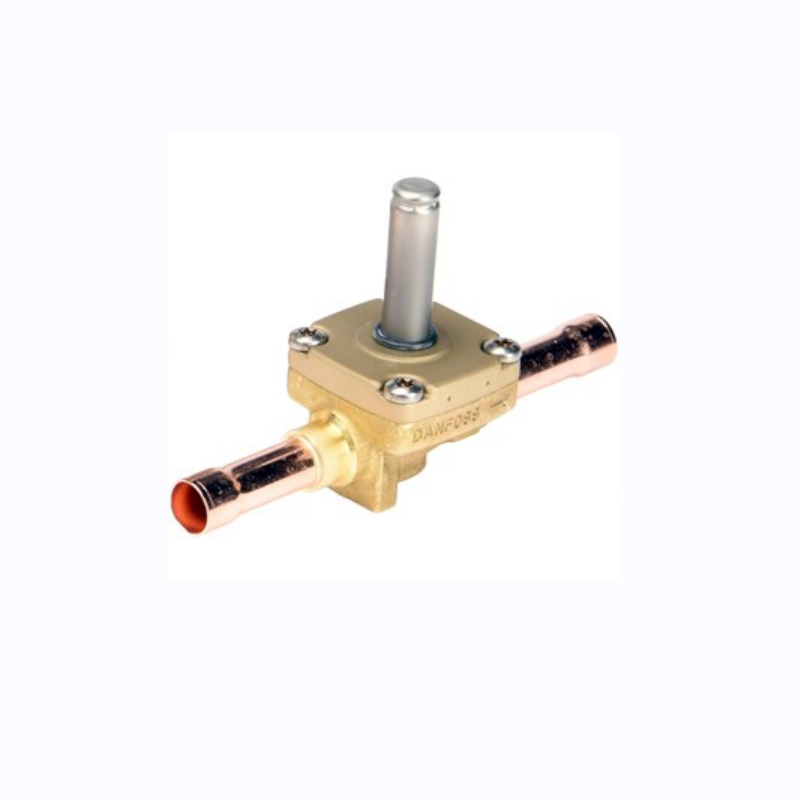

Danfoss Solenoid valve, EVR 20, welded, ODF, function: normally open
Item NO.:
EVR20 solenoid valveOrder(MOQ):
1Payment:
30% T/T as the deposit and 70% of the balanceMarket Price:
$122.54Price:
$128.07Product Origin:
made in ChinaColor:
as pictureShipping Port:
GuangzhouLead Time：
45Gross weight 1.42 kg
Net weight 1.04 kg
EAN 5702428942768
Cv value [gal/min] 6.9 gal/min
Kv value [m³/h] 6 m³/h
MWP [bar] PED is 49 bar compatible
REACH Candidate List substances >0.1% Lead (CAS no. 7439-92-1)
UL listed refrigerant R125
R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A
R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A
R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A
Product Name: Solenoid valve
Product range Solenoid valves
Product family name EVR v2
Product accessories Solenoid valve accessories
Media temperature range [°C] [min] -40 °C
Media temperature range [°C] [max.] 105 °C
Media temperature range [°F] [max] 221 °F
Media temperature range [°F] [min] -40 °F
Export size [mm] 28 mm
Export interface type welding, ODF
Refrigerant(s) R1234yf
R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A
R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E)
R407H, R413A, R422A, R422B, R422D, R438A, R444B, R447A, R449B, R454C
R455A, R463A, R513B, R515A, R515B, R516A, R442A, R447B, R512A, R454A, R507A
The function is normally open
Packaging method: multi-packing
Serviceable solenoid valve spare parts
Model EVR 20
Approval UL
EAC
LLC CDC EURO-TYSK
